Model LZJ900model Gantry Built-up Saw
Summary:
Keywords: Stone machinery
Classification:
Block Cutter Machines

E-mail:

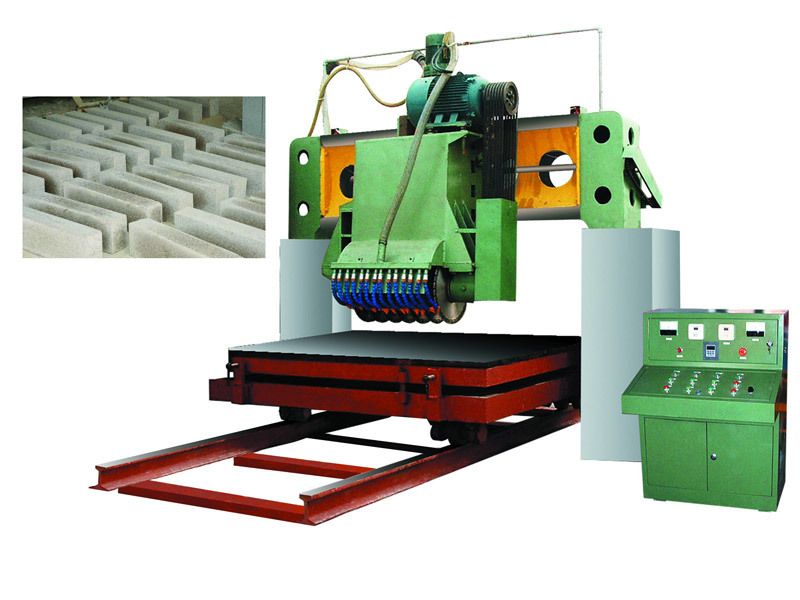

Model LZJ900model Gantry Built-up Saw
1) It is with diamond tools and higher speed of cutting technical,which is mainly for cutting marble;granite;road stone and culture stone. 2) It has the following features: 3) With multi-blade to cut stone,which is with higher efficiency;(save location size time for cutting each block) 4) With higher precision . Blade spcer is mechanical size to avoid moving tolerance for location size. 5) The stroken for blade moving on the transverse beam is 2270mm. |
|
Main technical parameters |
Efficiency length for main shaft 630mm |
Main motor 30Kw |
Work-bench siz: 3000*1300mm |
Blade diameter Ф900mm |
Machine size 5000*2400*3000mm |
Up-down stroken for blad: 400mm |
Weight about 3500kg |
